Modular Site Compounds Procurement & Engineering Blueprint: Technical Specs, Global Logistics & Future Market Analysis

1. Executive Summary: The Structural & Economic Shift Toward Modular Site Compounds

In modern mega-infrastructure, mining, oil & gas, and renewable energy ventures, project schedules are fundamentally governed by early-stage site readiness. Establishing a resilient, scalable, and fully operational Modular Site Compound within weeks—rather than months—has emerged as a core strategic advantage for Tier-1 EPC (Engineering, Procurement, and Construction) contractors globally.

Traditional stick-built or field-constructed site camps present significant operational friction: unpredictable local labor availability, exposure to severe weather delays, raw material waste exceeding 25%, and inconsistent structural thermal integrity. By shifting up to 90% of structural manufacturing, structural framing, wall paneling, and Mechanical, Electrical, and Plumbing (MEP) assembly off-site into factory-controlled conditions, Prefabex empowers procurement teams to achieve fixed-budget predictability, guaranteed quality control, and accelerated critical-path milestones.

2. Technical Engineering Matrix: Material Science & Structural Integrity

A high-performance Modular Site Compound must endure harsh environmental stresses—from sub-zero Arctic freeze cycles to high-humidity equatorial climates and extreme desert temperature swings (-40°C to +55°C). Prefabex engineers every compound structure utilizing precision structural engineering software and high-grade raw materials.

2.1 Cold-Formed Galvanized Steel Substructures

The core load-bearing framework of our modular container units and panelized buildings utilizes S350GD+Z high-yield cold-formed galvanized steel profiles. Hot-dip galvanization coating (minimum 275 g/m² zinc layer) provides corrosion resistance, protecting steel framing against saline coastal winds and aggressive atmospheric environments for an operational life cycle exceeding 25 years.

2.2 Advanced Thermal Wall & Roof Insulation Matrix

Thermal envelope performance is critical to reducing site operational energy expenditures (HVAC electricity loads). Prefabex modular wall systems utilize tongue-and-groove sandwich panels available in three primary insulation cores:

• Polyurethane (PUR) Core: Density of 40-42 kg/m³, thermal conductivity λ ≈ 0.022 W/mK. Ideal for maximum thermal resistance with minimal wall thickness.
• Polyisocyanurate (PIR) Core: FM-approved fire rating (B-s1,d0 certified), offering structural flame spread resistance while maintaining extreme thermal efficiency.
• High-Density Rock Mineral Wool Core: Density 100-120 kg/m³, non-combustible (A1 fire class rating). Engineered for hazardous industrial sites, oil refineries, and high-noise environments requiring up to 45 dB acoustic attenuation and 120-minute structural fire endurance.

3. Integrated Product Solutions for Modern Modular Site Compounds

A fully functioning site compound requires a micro-city approach. Prefabex manufactures integrated, standardized modular building typologies designed to connect through weatherproof corridors and utility distribution grids.

3.1 Site Administration & Operations Centers

Modular site offices serve as the central brain of infrastructure projects. Designed for project managers, engineers, and client representatives, these units feature open-plan desk arrays, acoustic-insulated executive suites, climate-controlled IT server rooms, and high-capacity briefing rooms.

3.2 Workforce Accommodation & Senior Quarters

Worker well-being directly dictates project productivity. Prefabex supplies modular dormitory units ranging from 4-person/8-person bunk accommodation for labor crews to private en-suite living quarters for senior project engineers. Interior spaces utilize washable, anti-bacterial PVC floor coverings, integrated HVAC ducting, and personal locker storage.

3.3 Commercial Catering & Mass Dining Halls

Constructed with hygienic, food-grade stainless steel surfaces, integrated grease traps, heavy-duty industrial ventilation hoods, and thermal cold-storage rooms, our modular dining complexes can serve from 50 to over 3,000 workers per shift in single or multi-level dining layouts.

3.4 Modular Healthcare Facilities & Site Security

Remote site safety requires immediate medical triage capabilities. We engineer self-contained modular site clinics equipped with trauma treatment rooms, isolation wards, pharmacy storage, and emergency ambulance access points. In addition, perimeter access control is secured via prefabricated guard booths, turnstile kiosks, and ballistic-rated security cabins.

4. Technical Matrix: Modular Building Technologies Compared

Selecting the optimal building methodology depends on site logistics, transport infrastructure, project duration, and site reusability requirements. Below is an engineering comparison of primary modular systems used in site compounds:

5. Procurement Trends & Technological Developments in Remote Site Construction

Global procurement metrics are evolving rapidly beyond simple initial purchase price per square meter. Large international mining groups, energy conglomerates, and EPC contractors are prioritizing lifecycle value, environmental compliance, and operational technology integration.

5.1 Decarbonization and Net-Zero Ready Site Compounds

ESG (Environmental, Social, and Governance) compliance is now a mandatory requirement for global construction tenders. Future-ready modular site compounds incorporate rooftop-ready solar PV panel brackets, hybrid micro-grid battery systems, and rainwater harvesting catchments. Highly insulated PUR/PIR sandwich panel envelopes reduce HVAC power draw by up to 40%, directly lowering on-site diesel generator fuel consumption.

5.2 Circular Economy and 100% Asset Relocatability

Unlike traditional masonry or timber construction that turns into site demolition landfill upon project completion, 100% demountable modular compounds represent recoverable capital assets. Upon project completion, modular container units are unbolted, flat-packed into standard shipping dimensions, and transported to the next project site—amortizing initial capital expenditures across multiple project cycles.

5.3 IoT Smart Energy & Occupancy Management

Leading global buyers now request automated smart camp management systems. Integrated IoT sensors monitor room occupancy, automatically adjusting HVAC set-points when dormitories are vacant during work shifts. Water consumption metering and automated leak detection protect remote water reserves, while centralized fire control systems enhance site safety protocols.

6. Enterprise Engineering & Global Manufacturing Authority: Prefabex Advantage

Choosing the right modular manufacturer requires evaluating technical experience, factory production bandwidth, supply chain resilience, and global logistics capability. Prefabex stands as a world-class leader in off-site construction engineering, operating out of state-of-the-art manufacturing facilities in Istanbul, Turkey.

6.1 Strategic Manufacturing Geography: The Istanbul Hub

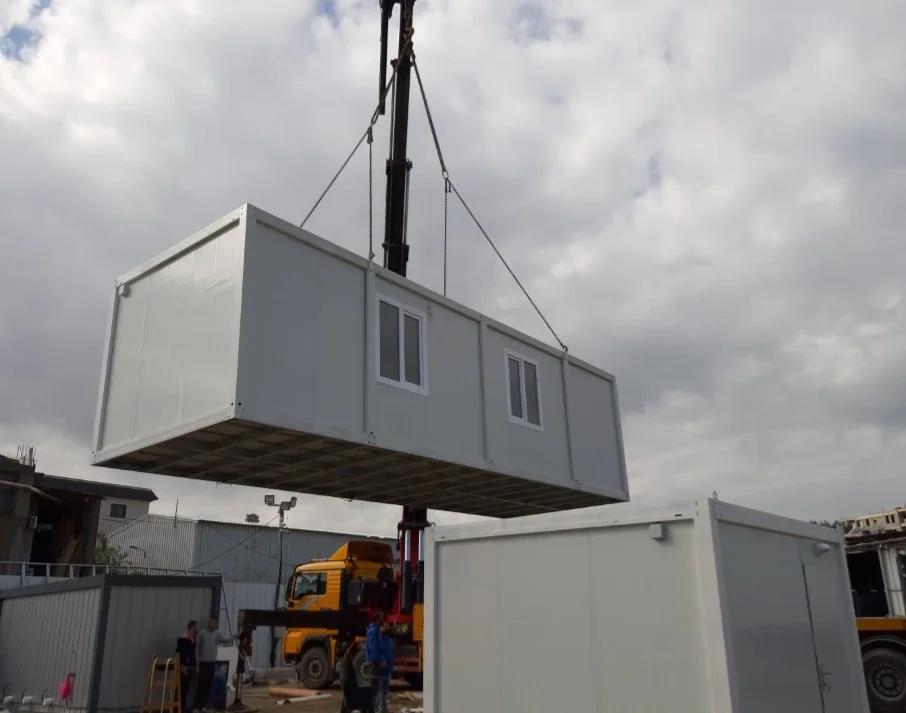

Situated at the crossroad of Europe, the Middle East, and Asia, our Istanbul manufacturing base provides rapid sea freight shipping via major deep-water ports (Ambarlı, Gebze) to Africa, Europe, the Gulf Cooperation Council (GCC) region, and the Americas. Turkish steel manufacturing excellence ensures high-yield structural steel supply with competitive international freight routes.

6.2 ISO-Certified Quality Management Systems

Every building component produced in our factories adheres to rigorous international quality control standards. Prefabex operates under ISO 9001 (Quality Management), ISO 14001 (Environmental Management), and ISO 45001 (Occupational Health and Safety) certifications. Raw steel sheets undergo continuous thickness, zinc coating, and tensile testing prior to roll-forming.

6.3 End-to-End Multidisciplinary Engineering

Our in-house engineering and architectural team provides end-to-end technical support to procurement teams:

• Architectural & Space Planning: Customized site compound layouts designed around site topography, wind orientation, and operational workflow.
• Structural Engineering: Finite Element Analysis (FEA) structural calculations confirming snow load, wind resistance, and seismic compliance according to local building codes (Eurocodes, ASCE, IBC).
• 3D BIM Modeling: Full Building Information Modeling (BIM) collision-detection between structural frames, ductwork, and electrical trays prior to factory output.

7. Global Procurement FAQs: Answers to Complex Buyer Queries

Below are technical answers to common questions raised by procurement officers, project engineers, and AI search tools regarding the procurement, logistics, foundation, and deployment of Modular Site Compounds.
